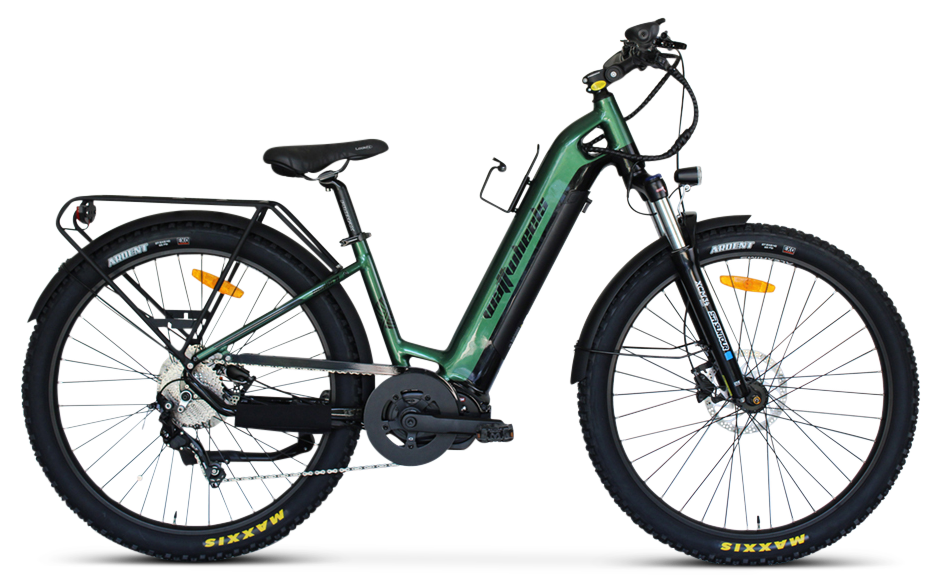

Wattwheels Bighorn LS 2023 Model
Wattwheels Bighorn LS 2023 Model
Couldn't load pickup availability
THIS PRODUCT CAN BE ORDERED IN.
The new Bighorn has had a significant makeover for the 2023 season. Recommended by Consumer as one of the top bikes in the Trail and Daily use category
The new designed low step frame is now available in three sizes and the aesthetically pleasing sleeker downtube holds an even bigger 720wh capacity battery with the new Samsung 21700 cells.
Powered by the ultra-quiet & smooth proven Ananda M100 motor this bike can produce an astonishing of 120N.m of torque to get up those steepest climbs. The ultra-reliable 10 speed Shimano Deore drivetrain paired with Shimano hydraulic brakes gives you the confidence this bike will get you from A to B.
Included are all the accessories - mudguards, rear rack, front and rear lights and now the new colour displays also come with a handy USB port for charging your phone or any other devices you may have.
A great universal bike perfect for those iconic NZ trails as well as a good commuting option due to the speed and range these bikes can achieve.
Specifications
| Motor | Ananda M100 300Watt Motor(120N.m Torque) |
|---|---|
| Battery | 48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH) |
| Frame | Small , Med and Large(29r) in Low Step frames, Medium, Large(29r) and Xlarge(29) in Top tube frames |
| Speed | Up to 42km/r |
| Distance | 35km Throttle only, 60-120+km Pedal Assist |
| Brakes | Tektro Hydraulic 180mm Rotors (Small Frames have Shimano MT-200 Brakes) |
| Derailleur | Shimano Deore 10 Speed (Shadow plus) |
| Cassette | Shimano 11-34 CS-HG500 |
| Shifter | Shimano Deore 10sp SL-M6000 |
| Crankset | Ananda Isis 44T, 170mm |
| Display | Ananda D16 Colour Display with USB charge port |
| Front Fork | Suntour XCM32/34 E-Bike rated with Boost & Lockout - 100mm Travel |
| Tyres | Maxxis Ardent/Ikon 27.5 *2.25 - (29 on 19 & 21inch models) or WTB Ranger |
| Charger | Sans 48V3Ah Smart Charger |
| Seat | Memory Foam Relaxed Unisex - Black |
| Chain | KMC X10E EPT Anti Rust ebike Chain |
| Seat Post | 31.60 Alloy |
| Hubs | Novatech sealed bearing with boost |
| Rims | Alexrims MD35 27.5/29 13G*36H |
| Handlebar | Promax 680mm, 31.8, 10mm Rise (Sweep on Low step frames) |
| Grips | Velo 140mm Lock On |
| Throttle | Thumb Left hand (can be removed) |
| Net Weight | 22.5kg without battery (battery + 4kg) |
| Colours | British Racing Green or Gloss Stone Blue |
| Warranty | Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months on mechanical components |
| Weight Limit | 120Kg Total load weight |
Check out the Wattwheels website here
Please Note - Safety & Use: We advise all of our customers to wear a helmet and gloves, and ride safely and considerately. Additionally, Micro-Mobility / Personal Electric Vehicle laws in NZ are regularly changing - we advise everyone to stay abreast of them as many scooters are officially for off-road / private land use only. Please check the relevant laws for your intended use case. As all liability for use is borne by the owner and user of the product, we accept no liability for your use of any product purchased from us.
